Up for consideration is a rebuild / mod service
for your vintage Neumann Gefell CMV-563 tube mic. The
mod includes replacing the old, low-grade caps and resistors,
installing a new Oliver Archut / AMI Transformer, modding the
circuit according to Oliver's schematic, and using a new select
low-noise NOS Telefunken EC92 tube. Also includes a selected
Mullard-branded (Made in W. Germany) spare EC92 tube. Here is
your chance to get this great mic mod done without having to
wait for two year , as our turnaround time including burn-in
and testing is just 1-2 weeks!!!
"The top end retained
the soft, smooth nature, but improved the sense of space. Upper
mids remained even and clear, but the mids/lower mids (800-200hz)
got fuller but also really cleared up a lot !...this was the
biggest change i heard. The low end stayed rich and warm, but
tightened up a bit. Overall it made things fuller and more natural.
I was very concerned about messing with the sound i already like
with the 563's, this was more improvement than change. I am going
to mod both my CMV563s"
-- Stuart
Sullivan
of Wire Recording,
Austin, TX
describing the mod A/B test.
HI -RES PHOTOS:
Click below for 1270 DPI Hi Res photos of the:

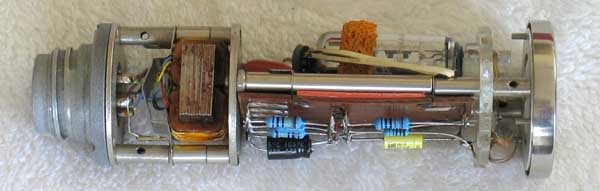

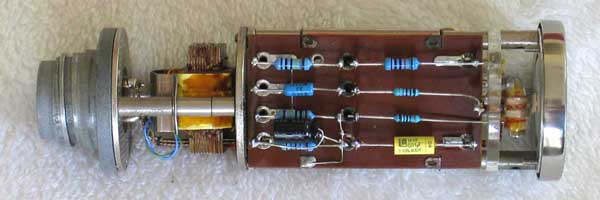

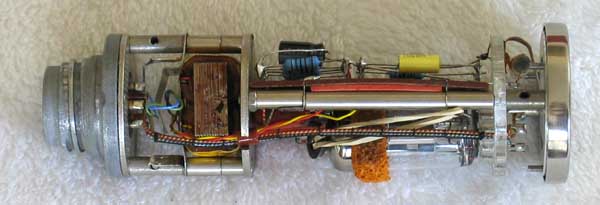

Rebuilt

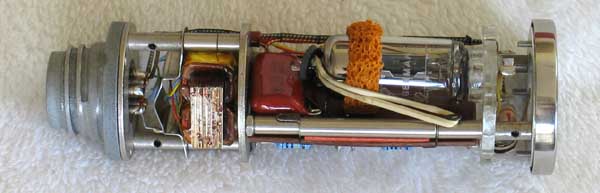

Mic | old
mic
NOS
Tele Tubes | stock
tube
New
AMI Xformer | stock
transformer.
SOUND FILES:
Click below for MP3 sound files of the stock mic and after
mod. I think the difference is big enough that you can even hear
it from the MP3 files!!! The signal chain is a Presonus ADL 600
mic pre, through the Rosetta 200 A/D converters in to Logic on
an iMac. The Capusles used were a stock Neumann Gefell M55k omni,
and a new Thiersch
switchable M7/M8 transducer in the old Gefell M8 head.
ACOUSTIC GUITAR M7:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
ACOUSTIC GUITAR M8:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
ACOUSTIC GUITAR M55k:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
WOODEN FLUTE M7:
Old Mic: M7
-- Modded Mic M7
WOODEN FLUTE M55k:
Old Mic: M55k
-- Modded Mic M55k
RAIN DRUM M7:
Old Mic: M7
-- Modded Mic M7
RAIN DRUM M8:
Old Mic: M8
-- Modded Mic M8
RAIN DRUM M55k:
Old Mic: M55k
-- Modded Mic M55k
VOICE OVER M7:
Old Mic: M7
-- Modded Mic M7
VOICE OVER M55k:
Old Mic: M55k
-- Modded Mic M55k
WHAT TO SEND:
This service is for modding and rebuilding a working CMV563.
You only need to send your CMV563 body (no capsule, no cable,
no PSU, but include the stock tube). You will get your mic rebuilt

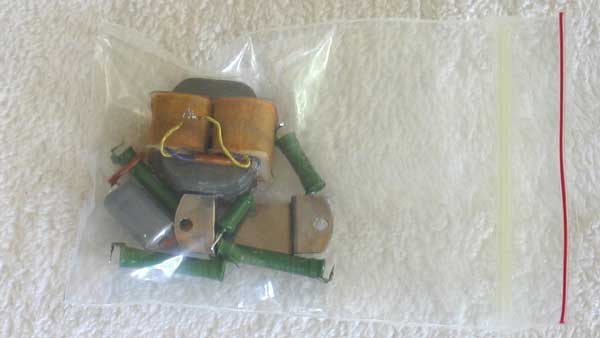

and a bag of old parts + your old tube. For additional CMV563
info, click here: 1
| 2
| 3
DISCLAIMER:
This uses the Oliver Archut circuit mod and his AMI CMV563
transformer. While Oliver knows about our mod service and has
sold us his transformers, we are not accociated with him in any
other way, and he is neither endorsing or recommending us. We
have simply added this mod service in an attempt to cut down
the waiting time for this desirable upgrade, which can take up
to 2 years from some of today's backlogged mic tech's.
SHIPPING & TERMS
USA shipping is $15.00 via FedEx Ground, with insurance. All
sales are final, so please ask questions first. Guaranteed not
to be DOA. We do accept PayPal. Thanks for looking. This auction
is for one Neumann Gefell CMV563 mic mod, and used parts
return. No other accessories are included.
Please EMAIL
me if you are interested, or if you have any questions.
